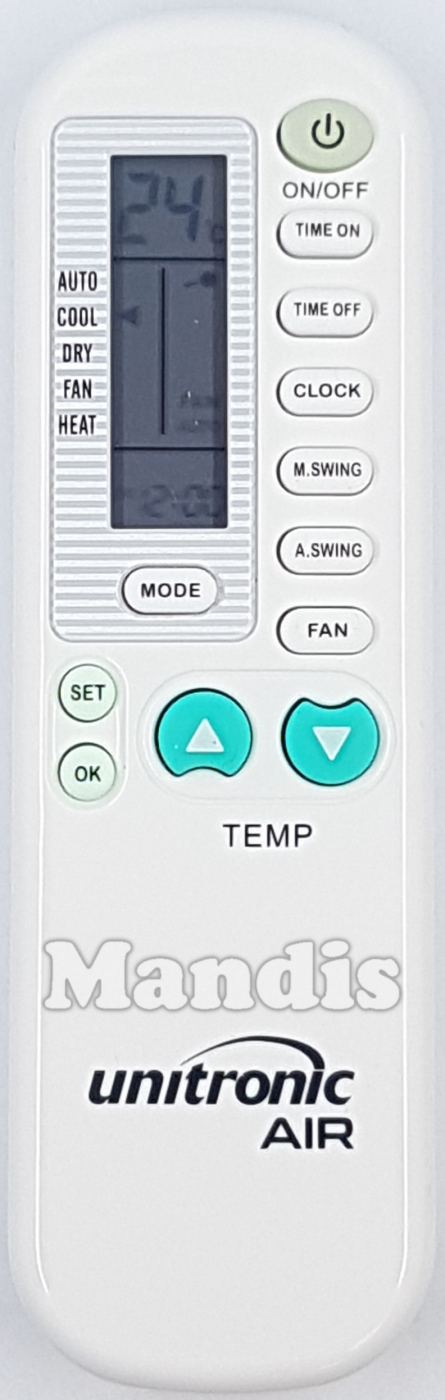

JOLLY LINE Unitronic Air original remote control

Works with all brands.
For split-type, window, or portable air conditioning units.
The remote control can set the maximum and minimum temperature so that only a temperature within the desired and configured range can be selected.
Backlit display.
Fluorescent keys.
Instruction manual included.
Code search by brand, automatic and manual.

Immediate brand search:
Ensure the air conditioning unit is off; if it is on, turn it off. Press the key corresponding to the brand as shown in the image in the instruction manual for at least 8 seconds until the unit turns on, then release the key.

Direct code entry:
Ensure the air conditioning unit is off; if it is on, turn it off.
1.- Find the brand of the unit in the code table in the instruction manual.
2.- Press and hold the Set key for at least 3 seconds until the code on the screen starts blinking; once it blinks, release the Set key.
3.- Use the Temp+ and Temp- keys to increase or decrease the code until you reach your brand’s code number in the list, then press the OK key.
4.- Test that all functions operate correctly; if not all functions work, try another code for the brand by repeating steps 2 and 3.

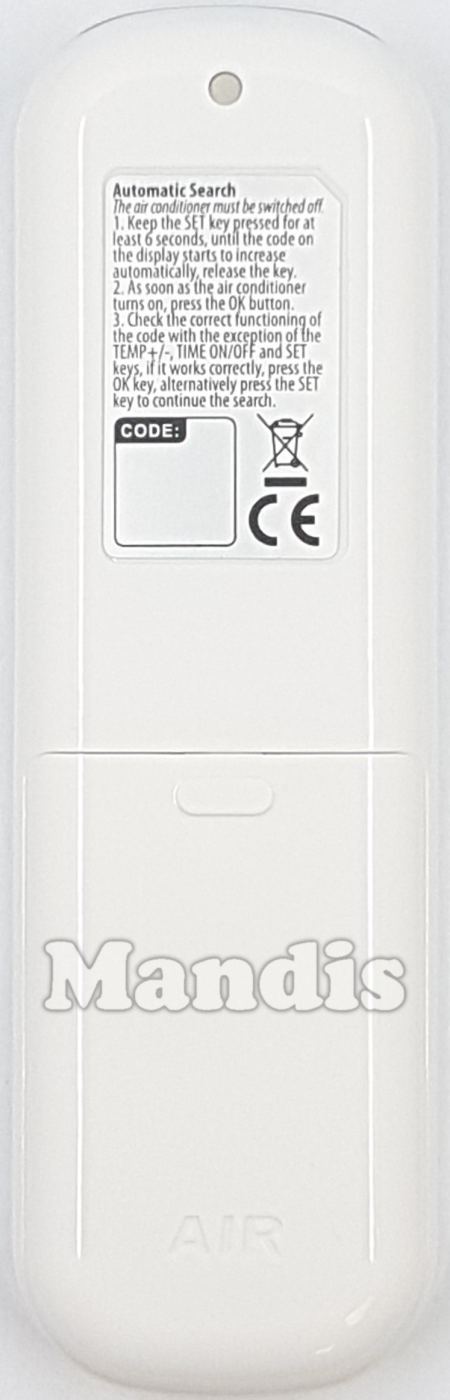

Automatic search:
Ensure the air conditioning unit is off; if it is on, turn it off.
1.- Press and hold the Set key for at least 6 seconds until the code on the screen starts to increase automatically, then release the key.
2.- As soon as the air conditioner turns on, press the OK key.
3.- Check that the code functions correctly, except for the Temp+, Temp-, Time On, Time Off and Set keys.
